MK7 GTI VAG-COM Coding for Remote Roll Down Windows

October 15, 2014
|

Please note when performing this coding on your vehicle the pinch protection will not be active when rolling up your windows via remote.

If you don’t have a VCDS or VAG COM cable you can use this OBDeleven which is a less expensive alternative

OBDeleven a Vagcom Alternative

Click Here for VW Parts Online
The video above is a demonstration of what you will accomplish with the coding steps listed below.
ENJOY!!!
Begin by clicking on “Select Control Module”
 photo Capture_zps73214a7a.png
Next, open “09-Cent. Elect.”
 photo Capture2_zps132efb74.png

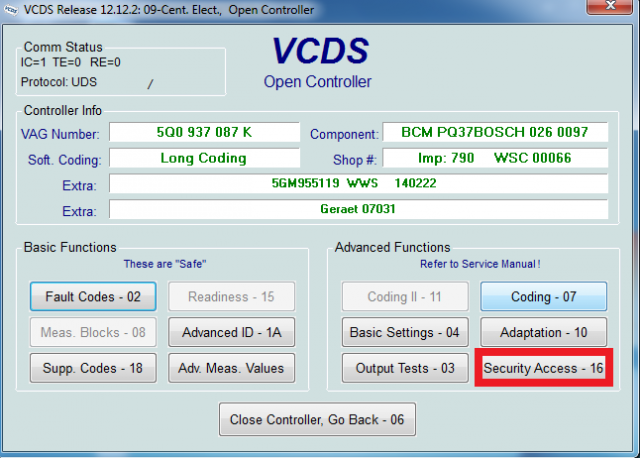

Then open the “Security Access” window.
 photo Capture3_zps36fca5df.png
Once in the “Security Access” window, type in the security code “31347” and click “Do It!”
 photo Capture4_zpsaa98633b.png
From there, you will need to open “Adaptation – 10”
 photo Capture5_zpsa3bf0777.png

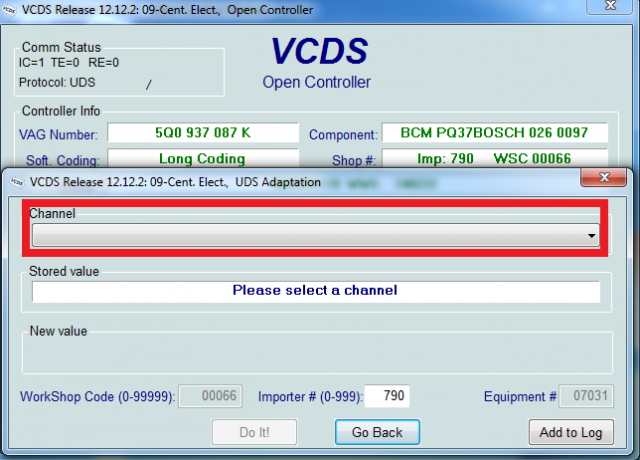

Click on the “Channel” drop down and select “(2)-Access control 2-Comfort opening
 photo Capture6_zps8a0d6b01.png
When you get into this window you will see the “Stored value” should say “not active”, open the “New value” drop-down and select “Active
 photo Capture7_zps22d4940f.png
Once it has been changed to “Active” click “Do It!”
 photo Capture8_zps62c88759.png

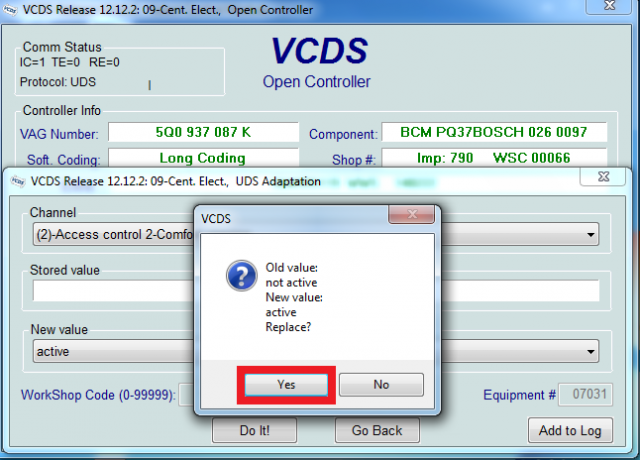

A new window will pop up asking you to confirm the change, click “Yes“.
 photo Capture9_zps7271bceb.png

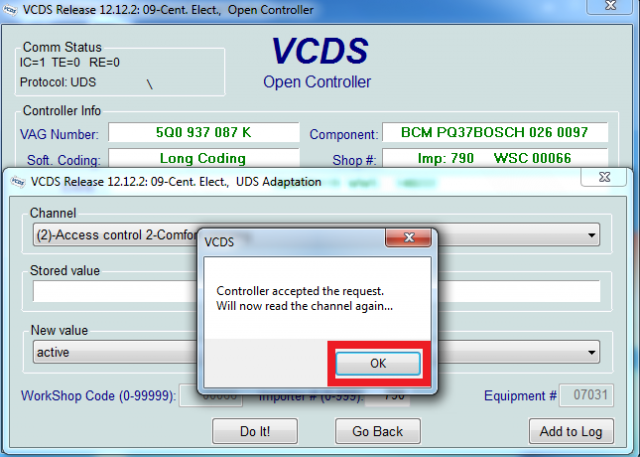

Once you click “Yes” the computer will re-read the channel to confirm the change, click “OK“, once the window closes the “Stored value” should be changed to “active”.
 photo Capture10_zps270f85ee.png
The next step is to open the drop-down and select “(3)-Access control 2-Comfort closing
 photo Capture11_zpsb4803ebb.png
Again we will change the “New value” to “active
 photo Capture12_zps923641c4.png
Click “Do It!
 photo Capture13_zpsb7397b26.png
Confirm the change by clicking “Yes“,
 photo Capture14_zps5d78af4f.png
and reload the channel by clicking “OK
 photo Capture15_zpsc94da607.png
The next step is to select “(7)-Access control 2-Funk Komfort oeffnen” from the drop-down.
 photo Capture16_zps12008a2f.png
Select “Active
 photo Capture17_zpse8d6cb68.png
Click “Do It!
 photo Capture18_zps4eccfd64.png
Confirm the changes by clicking “Yes
 photo Capture19_zps67ce633b.png

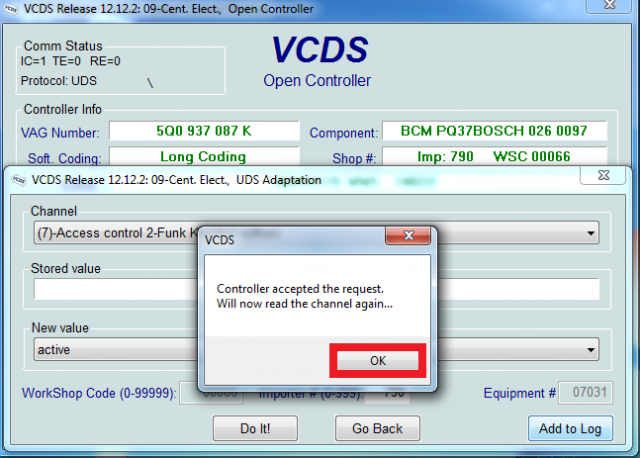

Click “OK
 photo Capture20_zps7f179de9.png
Select “(6)-Access control 2- Funk Comfort schliessen
 photo Capture21_zpsd7a79b80.png
Change the “New value” to “active
 photo Capture22_zps8299c893.png
Click “Do It!
 photo Capture23_zpsce3d7371.png
Confirm the change by clicking “Yes
 photo Capture24_zps8e941830.png
Click “OK
 photo Capture26_zps15a79aa5.png
Select “(27)-Access control 2-Menuesteurung Komfortbedienung einstellbar
 photo Capture27_zps89a09637.png
Change “New value” to “Adjustable”
 photo Capture28_zps35a646cc.png

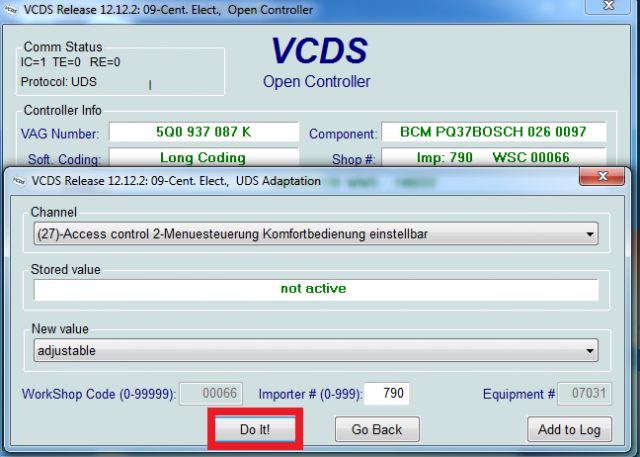

Click “Do It!
 photo Capture29_zpsdd6f57b2.png
Confirm the change by clicking “Yes
 photo Capture30_zps74d44219.png
Click “OK“, and exit out of the program.
 photo Capture31_zps17933592.png
Once the above coding is complete, go in to the “Car” menu on your head unit. and click the “Vehicle Settings” button in the lower right corner.
 photo 33_zps29af357b.jpg
When you’re in the “Vehicle settings” menu, press the  “Open and close” button.
 photo 34_zps25c5ff3c.jpg
You will see that there is a new menu option for “Window operation” open the drop down,
 photo 35_zps9d98979c.jpg
Change the setting to whichever you prefer.
 photo 36_zps73da5f12.jpg
We chose “All windows
 photo 37_zpsce7f1db0.jpg
Once you’ve chosen your setting you’re all set!
 photo 38_zpsb4e96767.jpg
