Sway Bar Kit, B9 SQ5

The 034Motorsport Dynamic+ Sway Bar Kit is available for B9/B9.5 Audi Q5/SQ5. The 034Motorsport Dynamic+ Sway Bar Kit features perfectly-matched front and rear sway bars made from high-quality spring steel for maximum rigidity and durability.

Designed to reduce body roll, improve turn in, reduce understeer and enhance steering feel, 034Motorsport's Dynamic+ Sway Bar Kit is the ideal upgrade for those in search of confidence-inspiring handling on the street and track. The 034Motorsport Sway Bar Bundle Package is available with perfectly-matched front and rear sway bars. During 034Motorsport's extensive testing, we found the B9 Q5/SQ5 Audi Platform benefitted heavily from the increased roll stiffness of the front suspension. With significant improvements to the paired rear sway bar, a rearward-balance-focused handling characteristic with this sway bar package.

TRACK-PROVEN HANDLING PERFORMANCE:

The Dynamic+ Sway Bar Kit was thoroughly evaluated on the street and track with the 034Motorsport B9 Audi SQ5 before release.

FRONT SWAY BAR FEATURES:

• 2-Way Adjustable
  • Soft Setting - 21.3% Increased Sway Bar Rate
  • Firm Setting - 39% Increased Sway Bar Rate
  • (Rate Comparisons to Factory SQ5 32mm Hollow Front Sway Bar, 3.7mm Wall Thickness)
• 32mm Diameter
• Hollow Design with Thicker Walls Compared to Factory Bar
• Black Powder Coating for Durability and Stealthy Appearance

REAR SWAY BAR FEATURES:

• 2-Way Adjustable
  • Soft Setting - 130% Increased Sway Bar Rate
  • Firm Setting - 158% Increased Sway Bar Rate
  • (Rate Comparisons to Factory SQ5 24.6mm Hollow Rear Sway Bar, 3.8mm Wall Thickness)
• 30mm Diameter
• One-Piece Design with Solid Spring Steel Construction
• Black Powder Coating for Durability and Stealthy Appearance

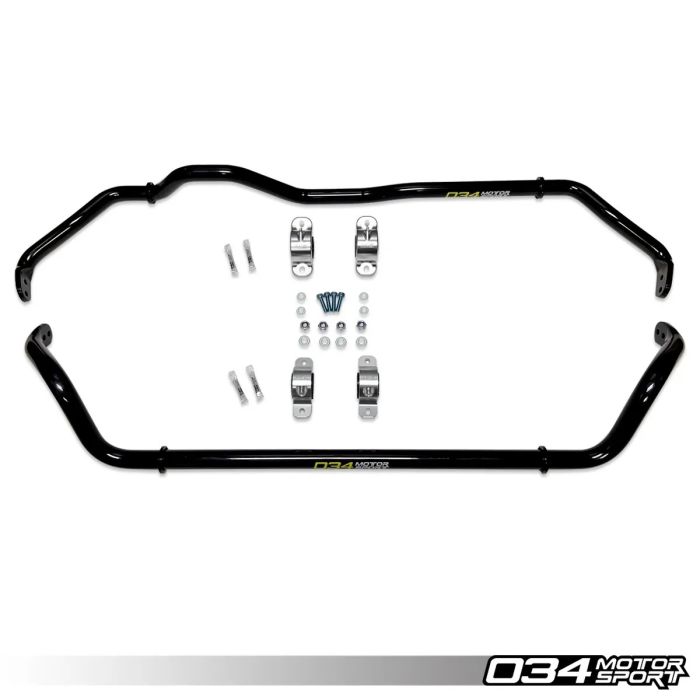

WHAT'S INCLUDED:

• 034Motorsport 32mm Adjustable Front Sway Bar Upgrade
• 034Motorsport 30mm Solid Adjustable Rear Sway Bar Upgrade
• Polyurethane Sway Bar Bushings
• Billet Aluminum Sway Bar Brackets with Integrated Zerk Fittings
• Installation Hardware Kit

FITMENT:

• 2018+ Audi SQ5 3.0T
• 2018+ Audi Q5 2.0T

OE PART INTERCHANGE:

• OE front bar: 80A 411 305 B (32mm)
• OE rear bar: 80A 511 305 S
