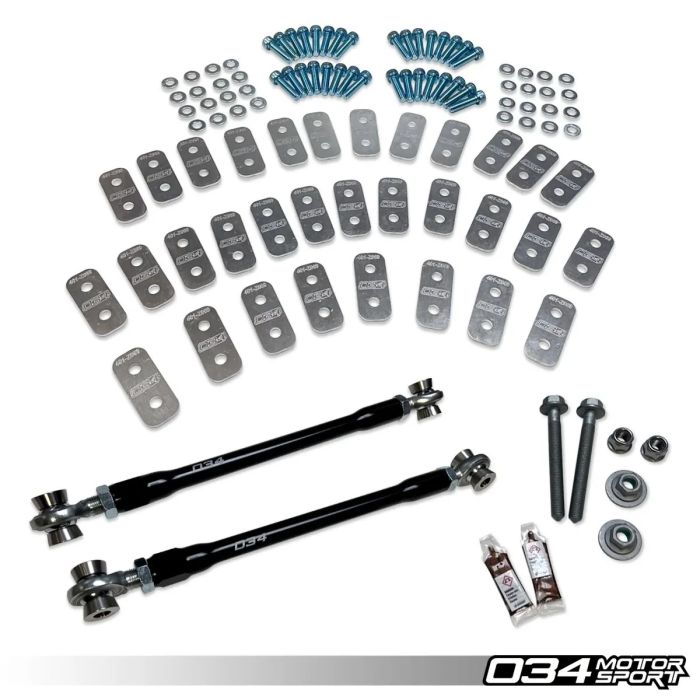

Looking to maximize the handling performance of your R8? The 034Motorsport Dynamic+ Camber Toe Kit for the Gen 1/1.5 Audi R8 is designed to allow for increased adjustability of your R8’s camber and toe alignment. The Dynamic+ Camber Toe Kit contains hand-selected products from the expansive 034Motorsport catalog, put together by the experienced 034Motorsport Engineering Team!
The 034Motorsport Camber Shim Kit for Audi Gen 1 & 1.5 R8 allows for the easy addition of negative camber to your vehicle. Designed to be a modular upgrade, each shim adds to the maximum camber range adjustable by spacing out the lower control arm in the front and rear suspension of your vehicle, improving both turn in and cornering grip on your R8!
So what does all this mean to you, the driver? By adding negative camber to your Audi R8, turn-in and mid-corner grip is substantially improved as lateral tire grip is maximized. With this extra grip, you will enjoy cornering speeds, from diving into Turn-2 at Laguna Seca Raceway to spirited backroad drives, due to the increased confidence in the amount of grip and lateral g-force your R8 will develop.
As cornering loads increase, so does tire distortion and body roll. The combination of these two factors increases the load on the outer half of the tire. Increasing static negative camber counteracts this interaction, and camber can be adjusted to optimize the tire’s contact patch at maximum cornering load, resulting in improved traction and tire wear.
From the factory, the Audi R8 utilizes a double-wishbone front and rear suspension. This means that there is an upper and lower control arm that connects your wheels to your vehicle. The camber for both the front and rear of the vehicle is controlled via the lower control arm and has a limited range of approximately 1.3°. Camber shims are added between the lower control arm and the frame of your vehicle, allowing for an increased overall range of camber. You are able to add up to two shims per lower control arm bolt point, allowing adjustability of up to -4.3° of negative camber in the front*, and -3.5° negative camber in the rear.
| Front | ||
|---|---|---|
| Shims Installed | Min | Max |
| 0 (Stock) | -1.5° | -2.8° |
| 1 | -2.2° | -3.5° |
| 2 | -3.0° | -4.3° |
| Rear | ||
| 0 (Stock) | -1.1° | -2.5° |
| 1 | -1.6° | -3.1° |
| 2 | -2.3° | -3.5° |
*NOTE: Total range may vary based upon whether you are stock height or lowered. Measurements above were collected with 034Motorsport Dynamic+ Lowering Springs installed.
Replace your fixed, cast aluminum factory rear toe links on your Gen 1 & Gen 1.5 Audi R8 with this performance engineered adjustable set from 034Motorsport!
034Motorsport's Motorsport Adjustable Rear Toe Links facilitate simple and precise toe adjustments, making alignment changes for optimal track performance or even tire wear easier than ever. In addition, Motorsport Adjustable Rear Toe Links feature Aurora spherical rod ends for ultimate precision and durability - ensuring that proper suspension geometry is maintained during hard cornering.
Motorsport Adjustable Rear Toe Links were thoroughly tested on the street and track on 034Motorsport's Gen 1.5 Audi R8 4.2L V8 Development Vehicle before release. These adjustable toe links are direct replacements for the stock parts, and designed to be fully serviceable and rebuildable.
034Motorsport R8 track use alignment specs; these specifications are optimal for a track-driven car with a very "loose" handling attitude and lively rear end that drives towards oversteer. Caution should be used with these alignment specs as they can cause the car to over-rotate and spin, especially during throttle-lift conditions while turning and trail braking:
Front: (Tires: 255/35/19 Michelin Sport Cup 2)
Rear: (Tires: 315/30/19 Michelin Sport Cup 2)
Our test vehicle is also running 034Motorsport Front and Rear Sway Bars, Dynamic+ Lowering Springs, and all 034Motorsport Spherical Motorsport line of products.
