Motor Mount Pair,SD,B8 V8Stre

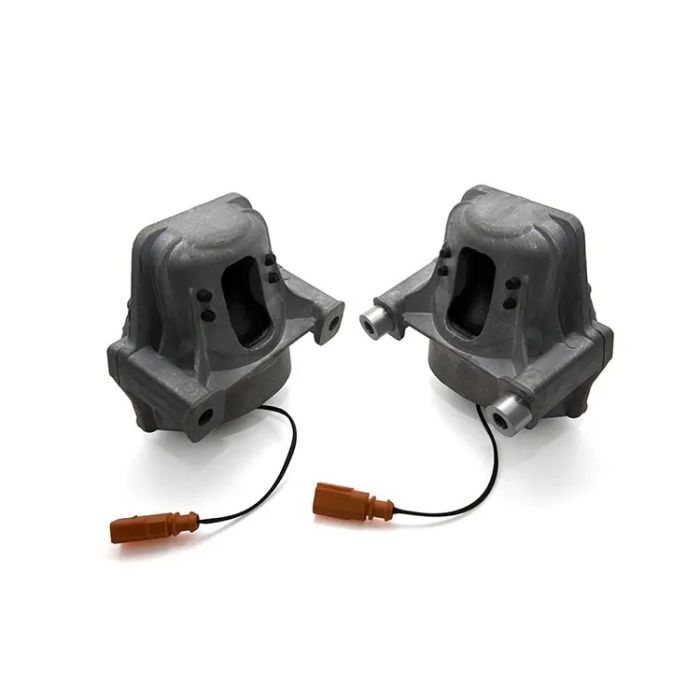

We're proud to announce the availability of our new Density Line Engine Mounts for the B8 Audi S5/RS5 4.2L FSI V8!

034Motorsport's Density Line Mounts are the new standard in comfort and performance. Our mounts are redesigned with performance in mind, and manufactured from high-durometer rubber for increased performance and durability, without sacrificing comfort. Density Line Mounts are optimized void-free and fluid-free, eliminating the slop associated with the factory mounts.

Street Density:

034Motorsport Street Density Engine Mounts are manufactured from 65 durometer rubber, which is a significant upgrade from the 45 durometer rubber used in stock B8 Audi S5/RS5 mounts. Since the mounts are also void-free and solid-filled, the resulting mount is substantially stiffer than stock, without introducing any additional noise, vibration, or harshness into the cabin. The mount bodies are made from high quality cast aluminum using OEM production techniques.

The result is greatly reduced drivetrain slop, crisper shifting, and minimal wheel hop, without any noticeable increase in noise, vibration, or harshness (NVH) inside of the cabin. The solid rubber, optimized void-free and fluid-free design eliminates the possibility of leakage and collapse, which is a very common issue with factory mounts. These mounts are a completely re-engineered performance solution, not just inserts for use with the factory mounts. They were tested thoroughly in-house at 034Motorsport, JH Motorsports, and by fellow Audi enthusiasts before release.

Factory Active Mount Emulators:

034Motorsport Street Density Engine Mounts utilize emulators to replicate the electronics of the factory engine mounts for plug-and-play installation. This ensures MIL-free operation for cars equipped with active engine mounts.

Features:

• Manufactured from 65 Durometer (Street Density) Rubber with Void-Free Construction
• Built-In Emulator with Plug-In Connector for Vehicles Equipped with Factory Active Mounts
• Reduced Drivetrain Slop
• Decreased Engine Movement Under Load
• More Direct Power Transfer
• Improved Shifting Feel
• Complete Drop-In Replacement of Factory Engine Mounts
• Sold in Pairs!

• 2008 - 2011 Audi S5 (B8)
• 4.2L FSI
• 2012 - 2017 Audi RS5 (B8)
• 4.2L FSI

Installation Instructions:

• Web
• Please Note: We highly recommend having these mounts installed by an experienced mechanic. The installation process is the same as the factory mount remove and replace procedure. Our installation guide is meant to supplement the factory procedure.
  • Only 1 mount requires the included spacers, and should be installed on the passenger side of the car. Both mounts may come with spacers installed, and if so, remove the aluminum spacers from one mount and use on the driver's side of the car.

High-Durometer Rubber vs. Polyurethane:

Density Line Mounts are manufactured from high-durometer rubber instead of polyurethane for a number of reasons. While vulcanized rubber mounts are more expensive to prototype due to increased complexity of manufacturing and high initial tooling costs, rubber is inherently better than polyurethane as a damping medium for mounts and bushings.

Rubber is able to deal with stress under both tension and compression, while polyurethane mounts rely on the damping medium to be effective only under compression. Rubber is also excellent in shear, where polyurethane is ineffective, making it ideal for applications that apply a shear force to the bushing during articulation.

Rubber does not pack and wear like polyurethane does, which ultimately results in a long-lasting part with consistent performance and comfort.
