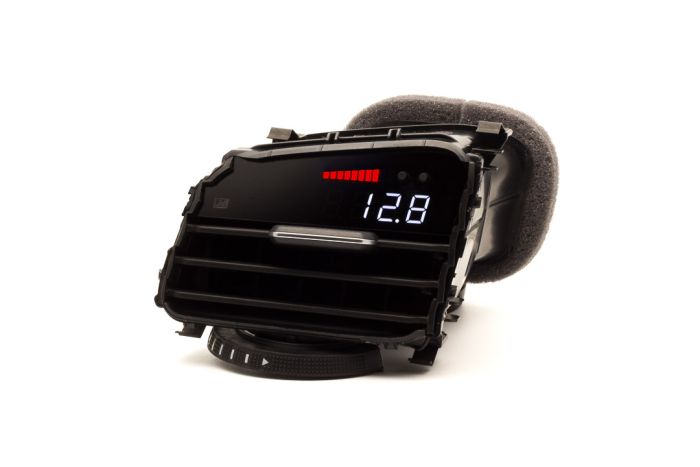

P3 Analog Boost Gauge - VW Mk7 (2014-2019) Left Hand Drive, Red bars / White digits, Pre-installed in OEM Vent

The P3 Analog Gauge *This gauge IS NOT plug and play. Boost/vacuum hose to the engine is required and wiring needs to be completed for power, ground, and optional analog inputs.

4 Available Analog Readouts

• Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included
• Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
• Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
• Battery voltage (red wire / black wire - read through power and ground wires)

• optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

OEM Vent Option

• We install the display in an OEM vent for your vehicle to make your install even easier.

Analog gauge base kit includes

• Integrated display
• Analog Box control unit
• Main harness
• Hard-wire harness
• Analog boost sensor *boost tap not included
• Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
• 3 zip ties
• 2 scotchlok wire taps

 Questions? Check out our P3 Analog Gauge install/config page for details.
